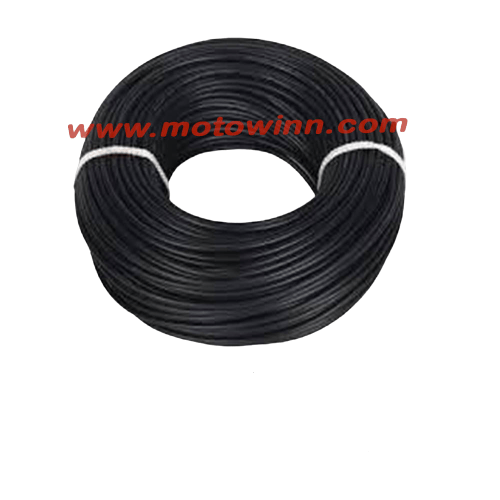

Flexible wires are copper wires with variety of domestic and commercial uses. A common application of copper multicore flexible wires is in Airconditioing systems – both for power as well as signalling. Another common use of flexible wires is in industries for power supply as well as control signalling. Now these muticore flexible wires are available to buy online.
PRODUCT SPECIFICATION
| Brand | Kalinga Gold |
| Product Category | Housing Wires |
| Size | 10.0 sq mm |
| Core | Single and Multicore Cables |
| Length | 90 mtr |
| Conductor Material | Copper |
| Colour | RED |
| Resistance (Max.) per Km at 20° C | 13.3 ohm |
| Material | PVC Insulated |
| Current Rating AC | 18 Amp |
| Thickness of Insulation (Nom.) | 0.6 mm |
| Nominal Thickness of Sheath | 0.9 mm |
| Max. Overall Diameter | 9.3 mm |
| Voltage Drop (DC or Single Phase AC) | 31 mV |
| Voltage Drop (3 Phase AC) | 26 mV |
| Certification | IS 694 |
