TECHNICAL SPECIFICATION
BASIC FEATURES
| Rated capacity | 10 L |
| Installation | Vertical |

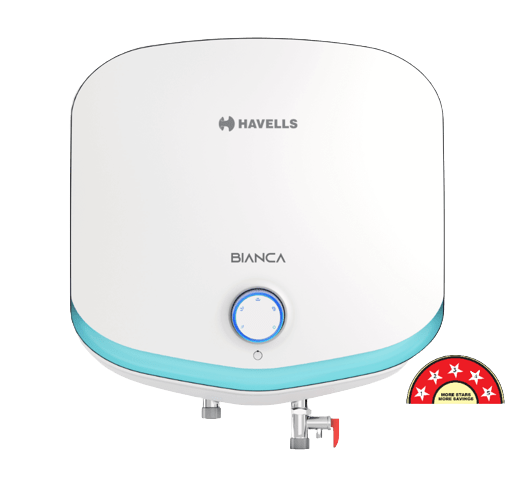

| Color | White Blue |
| Color options | White Blue, Ivory Champagne Gold |
| Ideal for | Bathroom , High rise buildings |
| Temperature setting | Manual |
| Whirl flow technology | Yes |
| Color changing ring LED knob | Yes |
PERFORMANCE FEATURES
| Rated pressure | 0.8 MPa |
| Standing loss in kWh / 24 h / 45 C | 0.365 kWh |
| Mixing factor maximum ( % ) | 30% |
| Reheating time in minutes to raise 50 C | 15 minutes |
| External tempertaure ring LED indicator | Yes |
POWER DETAILS
| Rated Power Input | 2000 W |
| Rated input current | 8.7 Ampere |
| BEE rating | 5 Star |
| Energy efficiency feature | Energy saving high density PUF insulation |
| Rated voltage | 230 V, 1 Phase, 50 Hz AC |
DIMENSIONS WEIGHT
| Height | 412 mm |
| Width | 280 mm |
| Breadth | 412 mm |
| Packing dimensions LxWxH (cm) | 48.6 cm x 48.6 cm x 35.7 cm |
| Weight when empty | 9.1 kg |
TANK FEATURES
| Heating element | Incoloy 800 glass coated heating element offers superior heating performance and resistance to oxidation and carbonation at high temperatures |
| Tank material | Made of ultra thick super cold rolled steel plates |
| Tank finish and coating | Feroglas dry powder coating technology |
| Extreme hard water resistance | Yes |
| Anode rod rust and corrosion resistance | Heavy duty magnesioum anode rod woth steel core to protect enamelled tank from rust and corrosion |
WARRANTY GUARANTEE
| Tank Warranty | 7 year |
| Body and electrical components Warranty | 2 Year |
| Heating element Warranty | 4 Year |
SALES PACKAGE (S)
| Net contents | 1 N storage electric water heater , 1 N user manual , 1 N multi-function safety valve, 2 N fasteners & 2 N flexi pipes |
SAFETY FEATURES
| Thermostat | Yes |
| Electrical safety | Shock safe plug |
| Thermal cut off | Yes |
| Multifunctional safety valve | Yes |
| Geyser protection from water splash | IPX4 technology to protect electrical parts from water splash, No |
